Minsel M540 engine, old RF100, RF120, RF140, M490 and M600

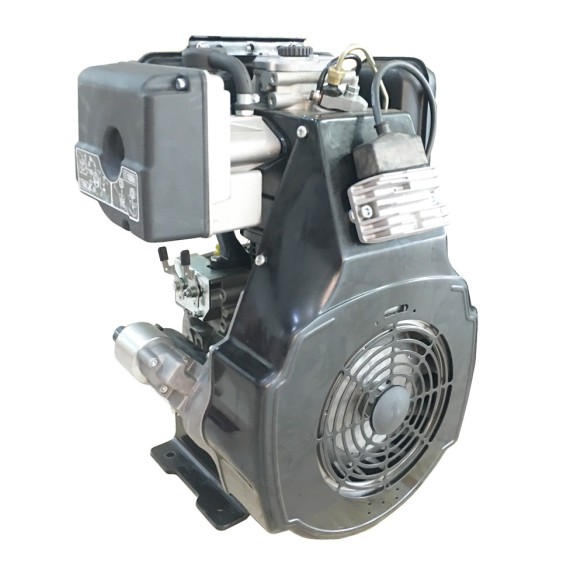

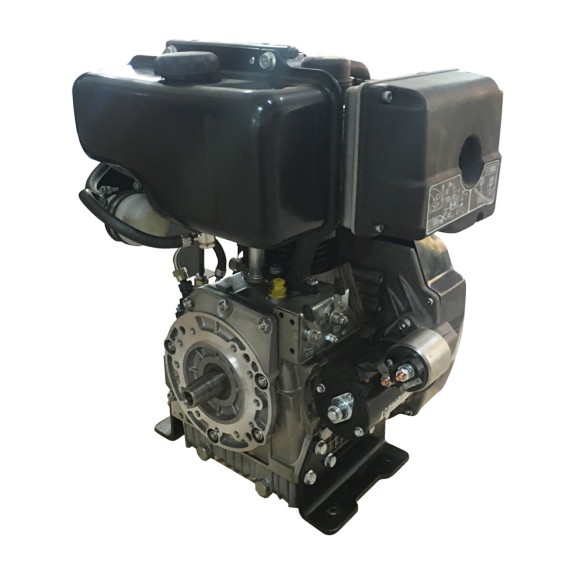

** We have special discounts on engines for professionals, register or contact us **. The Minsel M540 engine, formerly known as RF100, RF120, RF140, M490 and M600, is a robust solution for agricultural, industrial and public works machinery. Its design allows reliable operation in various applications, guaranteeing optimal performance in demanding conditions. Product features: Stroke (mm): 85mm; Voltage: 12v; Revolutions: 3000rpm; Displacement: 540cc; Number of cylinders: 1; Piston diameter: 90mm; Power: 12.5hp; Tank capacity: 4.5L; Air filter: dry paper; Cooling: air; Fuel: diesel; PTO: 30mm internal thread cone; Direction of rotation: right; Starter: electric.

Data sheet

Stroke (mm)
85mm
Voltage
12.
Observations
IF THE OLD CRANKSHAFT IS A MALE THREAD, YOU MUST MAKE AND ADAPT A BOLT ON THE CRANKSHAFT.
Brand
MINSEL MOTORS
Revolutions
3000 rpm
Boot box / panel
YES
Displacement
540cc
No. Cylinders
1
Piston Diameter
90mm
Power
12.5 hp
Deposit capacity
4.5L
Air filter
DRY ON PAPER
Refrigeration
Air
Fuel
DIESEL

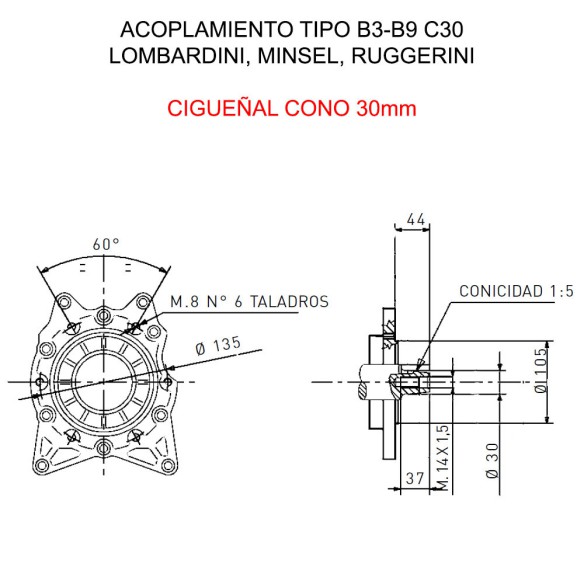

power take off
CONE 30mm INTERNAL THREAD
Turning sense
STRAIGHT
start
ELECTRIC
Image observation
NON-CONTRACTUAL IMAGE
Terms of sale
The articles marked in liquidation do not have a return option, if you have any doubts, contact us.

Description

Minsel M540 engine, old RF100, RF120, RF140, M490 and M600

The Minsel M540 engine is an essential component in various industrial and agricultural applications. This engine has been used in a variety of models, including the older RF100, RF120, RF140, M490, and M600, making it a versatile option for replacing parts in different generations of machinery.

Compatibility and Applications

The M540 is compatible with a wide range of equipment, allowing it to be integrated into existing systems without significant modifications. Its design has been adapted to operate in a variety of conditions, making it suitable for applications in:

  • Agricultural tractors
  • Construction machinery
  • Gardening and landscaping equipment
  • Electric generators

Related Models

This motor is part of a product line that includes several models, each designed to meet specific needs. Related models, such as the RF100, RF120, RF140, M490, and M600, share design features that allow for easy identification and replacement. This ensures that users can find the right replacement part for their equipment without complications.

Technical Characteristics

The Minsel M540 motor features a robust and functional design, suitable for use in demanding environments. Its construction is geared toward long life, which is essential in applications where reliability is key. Although technical specifications are not detailed, it is important to note that this motor has been designed to meet industry standards, ensuring its compatibility with the systems in which it is integrated.

Advantages of Substitution

Choosing a replacement engine like the Minsel M540 can offer several advantages. By choosing this model, users can benefit from:

  • Ease of installation on compatible models
  • Access to a component that has proven its effectiveness in the field
  • Possibility of keeping the machinery running without prolonged interruptions

Final Considerations

The Minsel M540 engine, along with its predecessors such as the RF100, RF120, RF140, M490, and M600, represents a solid choice for those looking for a reliable replacement. Its design and compatibility with a variety of applications make it a logical choice for the maintenance and repair of industrial and agricultural machinery. The availability of this engine on the market ensures that users can find the right solution for their specific needs, thus facilitating the operational continuity of their equipment.

In short, the Minsel M540 engine is a key component in the field of industrial and agricultural engines, offering an effective solution for component replacement in a wide range of applications. Its compatibility with legacy models and its functionality-oriented design make it a valuable resource for industry professionals.
